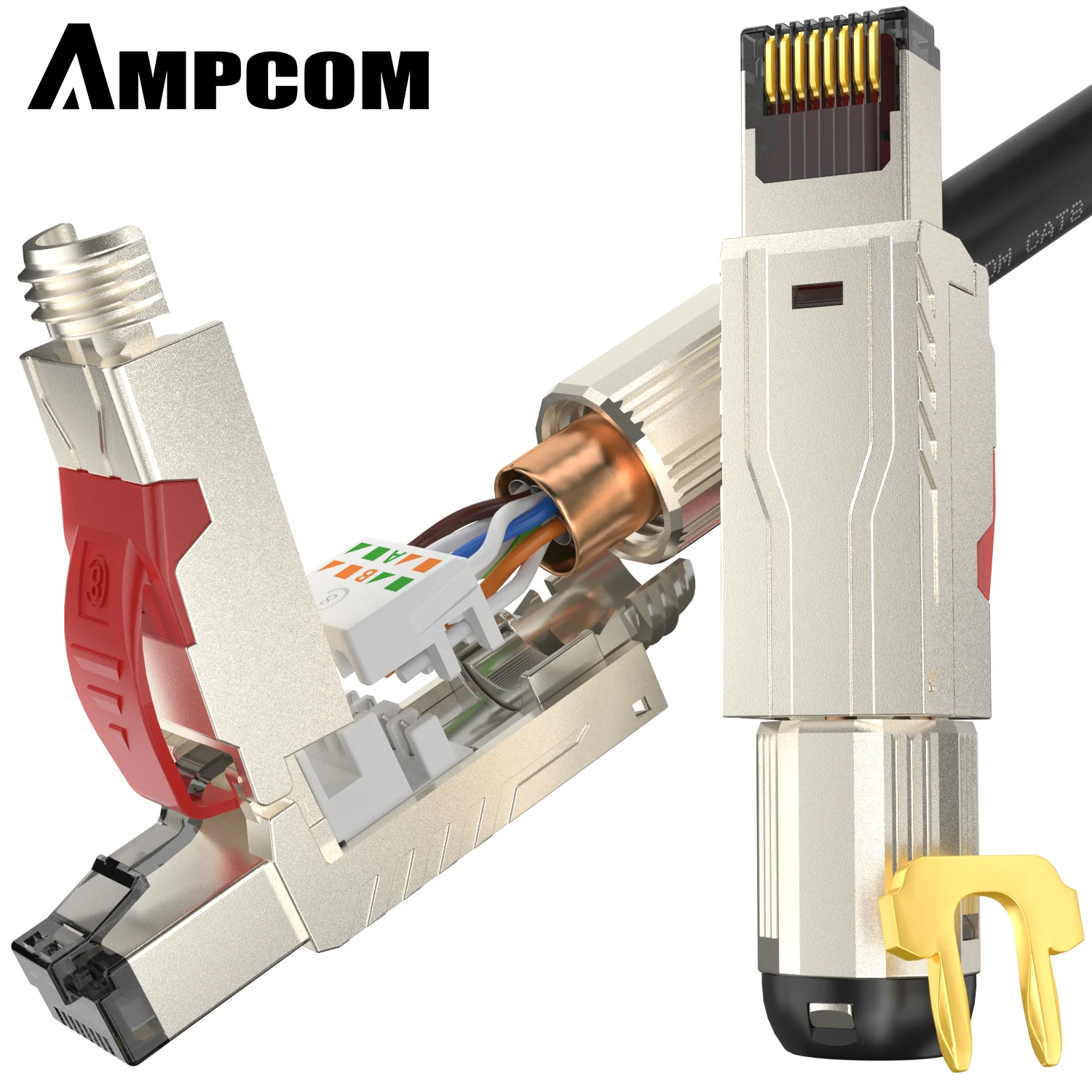

Get AMPCOM 2Pcs Cat8 Shielded Modular Plug - Field Termination Tool-Free 40G 2Ghz, 22-24AWG - (Fits Cat7A & Cat8 Cable) only US $22.20 just for today
click button to claim coupon
Consider - you thought of buying and there you are - you have bought the desired AMPCOM 2Pcs Cat8 Shielded Modular Plug - Field Termination Tool-Free 40G 2Ghz, 22-24AWG - (Fits Cat7A & Cat8 Cable) without actually heading anywhere! This is the online shopping fad!! You need not get ready putting on your favorite attire and sneakers, taking out your car, getting caught up up in traffic jams, visiting from one store to another till your whole day is abused! And you end up buying only some things, not all that you have contained in the list. And then you will have to proceed through a similar hassle another day or maybe more. All these can be negated with shopping in this store. It is real convenience right at the doorstep!

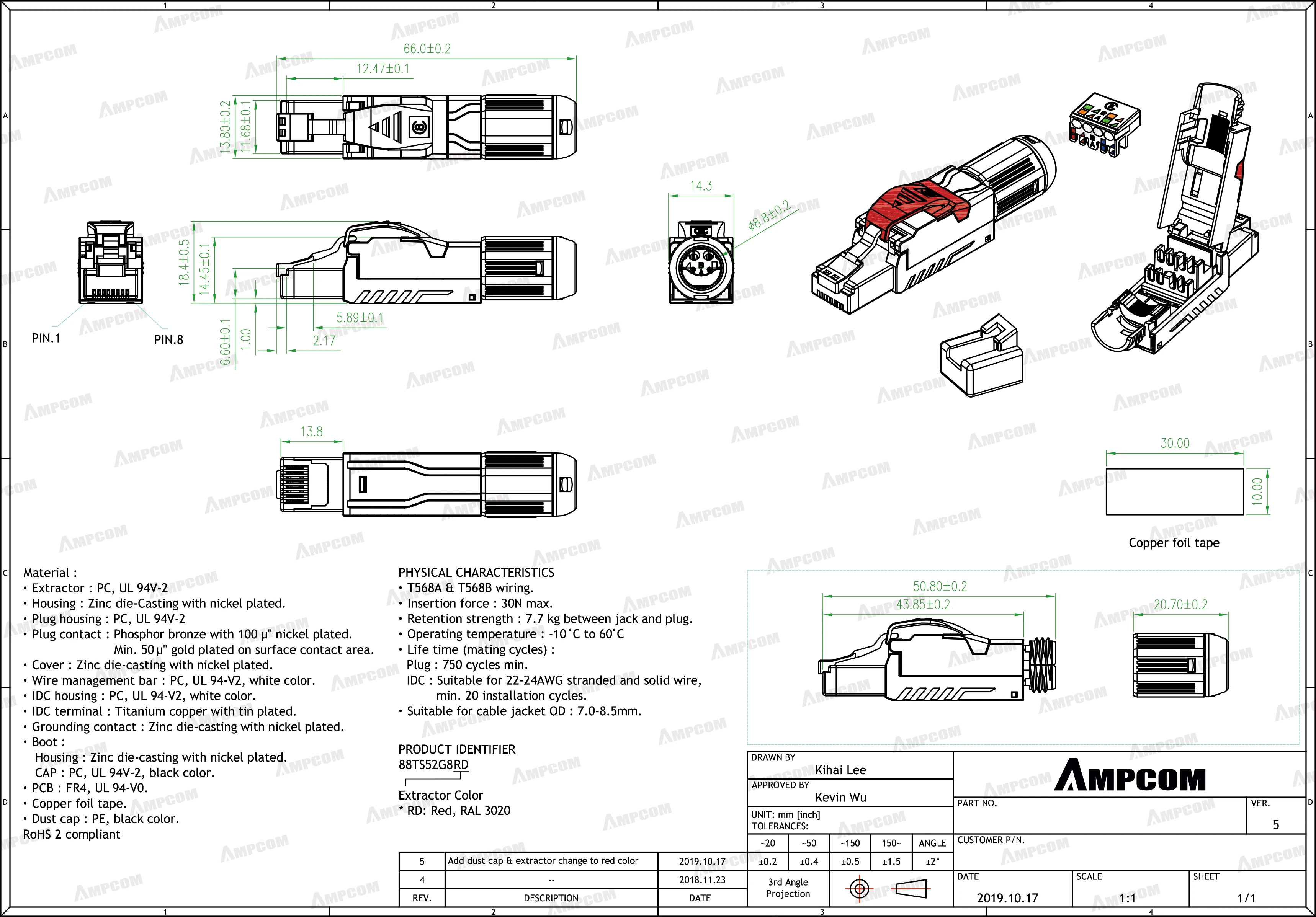

Material:
•Extractor: PC, UL 94V - 2•Housing: Zinc die-casting with nickel plated.•Plug housing: PC, UL 94V - 2•Plug contact: Phosphor bronze with 100 μ‘’ nickel plated. Min.50 u " gold plated on surface contact area.•Cover: Zinc die-casting with nickel plated.•Wire management bar: PC, UL 94-V2, white color.•IDC terminal: Titanium copper with nickel plated.•Grounding contact: Zinc die-casing with nickel plated•Boot: Housing: Zinc die-casing with nickel plated. CAP: PC, UL94V-2, black color.•PCB: FR4, UL 94-V0.•Copper foil tape.•Dust cap: PE, black color.RoHS 2 compliant
PHYSICAL CHARACTERISTICS
T568A & T568B wiring.•Insertion: 30N max.•Retention strength: 7.7 kg between jack and plug•Operating temperature: - 10℃ to 60℃Life time (mating cycles): •Plug: 750 cycles min. •IDC: Suitable for 22 - 24AWG stranded and solid wire, min. 20 installation cycles.•Suitable for cable jacket OD: 7.0 - 8.5mm.
