1310/1550nm 22/20dB SM OTDR with VFL OPM Light Source Fiber Optic OTDR Optical Fiber Tester Optical Time Domain Reflectometer
THE OTDR
1.With Visual Fault Locator
2. With Optical Power Meter
3. With Optical Light Source
4.With Touch Screen
5. With Test Report Print Software
6. With Calibrate Certificate
7. With SC FC ST Connectors （Default Connector FC/UPC SC/UPC, if need FC/APC SC/APC, please notice us)
Professional Equipment For FTTx & Metro Optical network Systems
As fiber optics plays more and more important role in modern telecommunication and CATV networks, the requirements to the construction, test and maintenance of fiber optics links also become more prominent.
This OTDR is a unique product mainly designed for construction and maintenance of telecommunication and CATV networks. This OTDR can be widely used in engineering construction, maintenance test and emergency repair of all fiber optics related systems. Comparing with a regular OTDR, this OTDR is more compact in size and easier for field use.
This OTDR handheld design, compact and lightweight, easy to carry. Event information through TFT color display and data storage capabilities. Through the USB interface, the test data can be uploaded to the PC, to facilitate the post-processing, archiving and printing.
| General | |
| Dimension | 190x84x52mm |
| Display | IPS Touch Screen, 800x400px, 4 inch |
| Interface | 1×USB, 1xOTDR port, 1xVFL port, 1xPower Meter Port, 1xCharging Port |
| Power Supply | 7.4V/4400mAH(dc), 100V(ac) to 240V(ac), 50~60Hz |
| Battery | Lithium battery (with air traffic certification) Operating Time: 8 hours①, Telcordia GR-196-COR |
| Power Saving | Backlight off Auto shutdown |
| Data Storage | Internal memory: 200 curves |
| Language | English in default |
| Environmental Conditions | Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation) Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation) Proof: IP65(IEC 60529) |

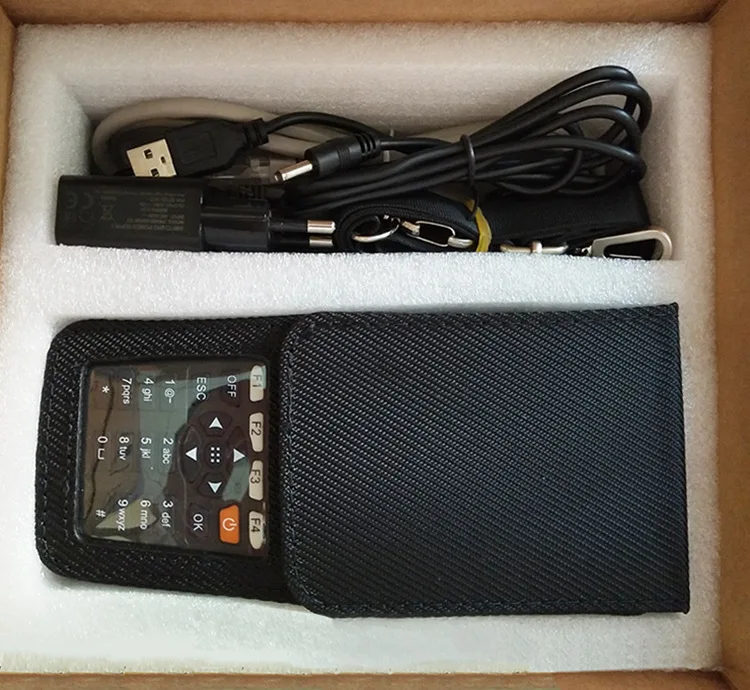

| Accessories | Standard: Main unit, power adapter, SC Adapter, ST Adapter, FC adapter, USB cord, User guide, carrying case |
| Test parameter | |
| Pulse Width | 5ns to 20us |
| Distance Range | 3m to 60km |
| Sampling Resolution | Minimum 16cm |
| Sampling Point | Maximum 65K |
| Linearity | ≤0.05dB/dB |
| Averaging Time | 5s, 15s, 30s, 1min, 2min, 3min |
| Auto Off | off/on |
| Distance Accuracy | ±(1m+measuring distance×2×10^-4+sampling resolution ) ( excluding IOR uncertainty) |
| Screen Backlight | ≤99 |
| IOR Setting | 1.0000~2.0000 |
| Units | km, kft, ft |
| OTDR Trace Format | Telcordia universal, SOR, issue 2(SR-4731) OTDR: User selectable automatic or manual set-up |
| Fiber Event Analysis | User defined PASS/FAIL thresholds: -Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) -Reflective: 0.01 to 32dB (0.01dB steps) -Fiber end/break: 3 to 20dB (1dB steps) |
Visual Fault Locator:
Wavelength : | 650nm |
VFL Output Power | >=10mW |
Mode | CW，1Hz，2Hz |
Fiber type | SM/MM |
Optical Power Meter
Measurement range dBm | -70～+10 dBm | -50～+26 dBm |
Wavelength range（nm） | 800～1650 | |
Calibrated wavelength | 850nm、1300nm、1310nm、1490nm、1550nm、1625nm（other wavelength will be on request） | |
Detector | InGaAs | |
Accuracy | <±3% （-10dBm、22℃） | |
Resolution | Linearity：0.1%，Non-linearity：0.01dBm | |
connector | Changeable FC/PC SC/PC，( ST as Optional) | |
Optical Light Source
Emitter | FP-LD |
wavelength (nm) | 1310/1550nm |
Connector | FC/PC（SC/ST as optional） |
Output power | ≥-5dBm |
Output stability(dBm) | ±0.04@20℃@15min |
Modulation | CW/270Hz/1KHz/2KHz |
Fiber type | SM |
