Cheap APC Fast Connector Single-Mode FTTH Tool Cold Connector Tool Fiber Optic Fast Connector 58mm 4001232339683

Get APC Fast Connector Single-Mode FTTH Tool Cold Connector Tool Fiber Optic Fast Connector 58mm only US $84.50 - 165.75 just for today

APC Fast Connector Single-Mode FTTH Tool Cold Connector Tool Fiber Optic Fast Connector 58mm

Product ID : 4001232339683

Price : US $84.50 - 165.75

* Price Update at : 2020-09-29 *

click button to claim coupon

Online shopping APC Fast Connector Single-Mode FTTH Tool Cold Connector Tool Fiber Optic Fast Connector 58mm has numerous advantages as a result of which many people want to shop online as it is convenient and saves a lot of time. If you haven't much shopped online yet, therefore this product are the reasons that can definitely be going to give you a solid reason to shop online today!

NOTICE:

1.Buyer is responsible for the customs duty and local import taxes etc. The price here not

includes the destination fee in buyer's side.


2.Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after placing the order

3.For some sepcial countries, like Brazil, Mexico, E-packet and China Post delivery time maybe around 20-90 days

 SC APC Fast Connector Single-Mode Connector FTTH Tool Cold



 Connector Tool Fiber Optic Fast Connector 58mm

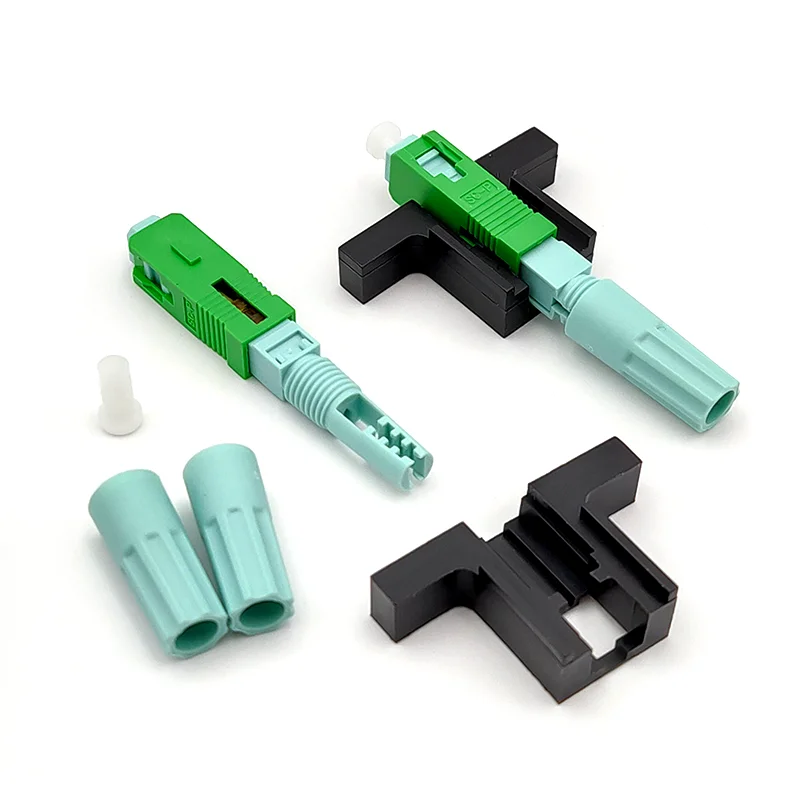

Description



Quick Assembly Connector (also named “ No-Polish Connector ” , “Pre-polish Connector” or “ Fast Connector ”) is an easy-to-install device. No tool or jig is required. It is universal for 250um /900um / 2.0mm / 3.0mm / Flat Cable.

it was designed for fast termination with pre-polished connector. Using V groove technology, it requires no epoxy. With transparent body, the connecting result can be seen by Fiber Checker immediately. This is an ideal solution, either for outside plant or inside a building.

Optic Fiber Fast Connector

1.Simple structure

2.Save time

3.Low insertion loss.



Feature



1. Based on the pluggable non-preset tube technology

2. Precision ceramic components with co-axial self centering, Excellent and durable optical property

3. Optical fiber fits axially in elastic way and avoids completely any false connect

4. Triple clamping through the naked fiber, tight buffer and cable, etc., can be used as patchcord

5. High on-line tensile strength of Optical Fast Connector after terminating, always keep connecting    under the force from cabling and drawing.

6. Integrated protection of the casing to withstand harsh user environment.

7. Directly connectable with ONU without any optical socket, which reduces FTTH cost.

8. High success rate and easiness in installation with average splicing time 100 sec

9. Lower requirement for the habit working and work environment call for to the builder.

10. Visible Installation quality; independent from any far end light source and special device satisfying cabling construction in any sectioned way.



Specification



ITEM	Technical Parameters
Applicable for	3.1 x 2.0 mm Drop cable
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	≥40dB
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+80°C
On-line tensile strength (20 N)	IL ≤ 0.2dB  RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.2dB  RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)	IL ≤ 0.2dB  RL ≤ 5dB
