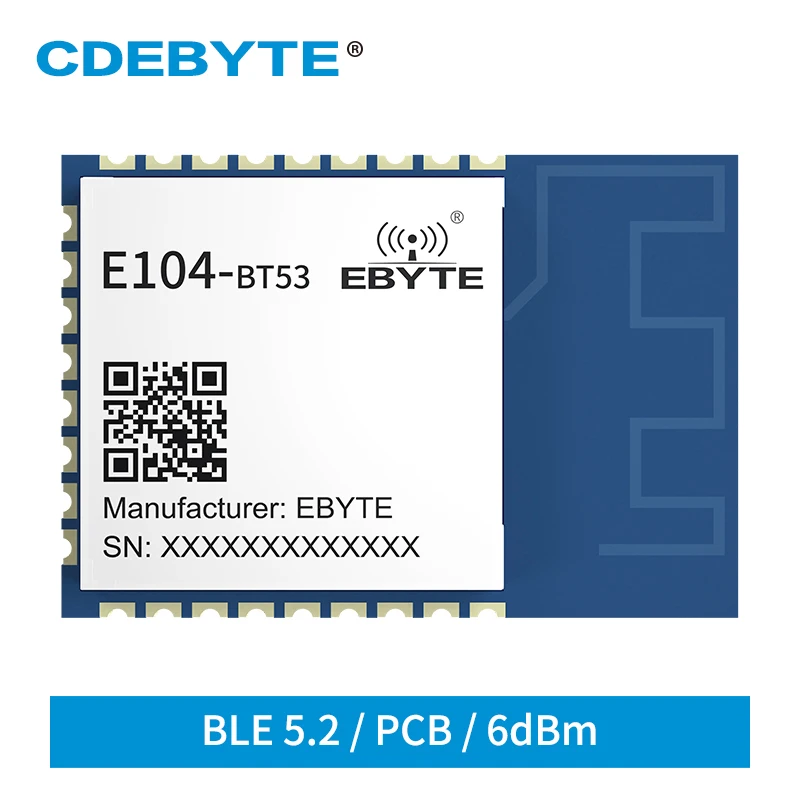

Get EFR32 Bluetooth5.2 Module BT5.2 6dBm 2.4GHz Cortex-M33 GPIO ebyte E104-BT53 Direction Finding Wireless Transceiver and Receiver only US $3.29 just for today
click button to claim coupon
Shopping online is one of the easiest methods of purchasing items to your home as well as gifts with respect to special occasions. Online discounts help to make process that much more delightful. In order to save money when shopping by the traditional method, you have to spend hours clipping and producing coupons, then once with the store, you have to be sure you have the coupons needed and purchase the right size EFR32 Bluetooth5.2 Module BT5.2 6dBm 2.4GHz Cortex-M33 GPIO ebyte E104-BT53 Direction Finding Wireless Transceiver and Receiver. This can be a genuine hassle, especially if you have children along for the trip.
Limit Parameters
| Main Parameters | Value | Remarks | |
| Min. | Max | ||
| Power supply voltage (V) | 0 | 3.6 | Power over 3.6V will damage the Module |
| Blocking power（dBm） | - | 10 | Probability of burn down at close range |
| Working temperature（℃） | -40 | +85 | Industrial grade |
Operating parameter
| Main Parameters | Value | Remarks | ||
| Min. | Typical | Max | ||
| Working voltage (V) | 1.9 | 3.3 | 3.6 | ≥3.3V can guarantee the output power |
| Communication level（V） | - | 3.3 | - | Using 5V level has the risk of burning |
| Working temperature (℃) | -40 | - | 85 | Industrial design |
| Working frequency band (MHz) | 2402 | 2440 | 2480 | Support ISM frequency band |
| TX Current(mA) | - | 7.5 | - | @Transmit power 6dBm |
| RX current（mA） | - | 3.6 | - | - |
| Sleep current（μA） | - | 0.17 | - | Software is off |
| Max TRX Power（dBm） | - | 6 | - | - |
| Receiving sensitivity（dBm） | - | -106.7 | - | -106dbm sensitivity @125kbps GFSK; -98.9dbm sensitivity @1Mbit/s GFSK; -96.2dbm sensitivity @2Mbit/s GFSK; |
| Air data rate（bps） | 125k | - | 2M | Programmable by User |
| Main parameter | Description | Remarks |
| Reference distance | 120m | Clear and open, antenna gain 5dBi, antenna height 2.5m,air rate 1kbps |
| Crystal frequency | 38.4MHz/32.768KHz | - |
| supporting agreement | BLE 5.2 | - |
| Packaging method | SMD | - |
| Interface method | 1.27mm | - |
| IC full name | EFR32BG22C224F512GM32 | - |
| FLASH | 512KB | - |
| RAM | 32KB | - |
| Kernel | ARM®Cortex®-M33 | - |
| Dimensions | 13*19mm | - |
| RF interface | PCB | Equivalent impedance is about 50Ω |
